... Hammer(1), Hammer(2), Scalers, Air Flux Chippers, Air Sand Rammer ...

Air Chipping Hammer

ACH21011.jpg Model No.: ACH21011
Stroke: 1"(25 mm)
Blow Per Min: 2300
Length: 14-1/2"(368 mm)
ACH21012.jpg Model No.: ACH21012
Stroke: 2"(51 mm)
Blow Per Min: 2000
Length: 15-1/2"(394 mm)
ACH21013.jpg Model No.: ACH21013
Stroke: 3"(76 mm)
Blow Per Min: 1800
Length: 16-1/4"(413 mm)
ACH21014.jpg Model No.: ACH21014
Stroke: 4"(102 mm)
Blow Per Min: 1600
Length: 18-1/4"(464 mm)
ACH21020.jpg Model No.: ACH21020
Stroke: 2"(51 mm)
Blow Per Min: 3000
Length: 10-13/16"(275 mm)
ACH21021.jpg Model No.: ACH21021
Stroke: 2"(51 mm)
Blow Per Min: 3000
Length: 10-13/16"(275 mm)
ACH21040.jpg Model No.: ACH21040 (Heavy-Duty series)
Stroke: 3-1/16"(78 mm)
Blow Per Min: 2300
Length: 14-11/16"(373 mm)
ACH21040A.jpg Model No.: ACH21040A (Heavy-Duty series)
Stroke: 3-1/16"(78 mm)
Blow Per Min: 2300
Length: 14-11/16"(373 mm)
ACH21041.jpg Model No.: ACH21041 (Heavy-Duty series)
Stroke: 4-11/16"(119 mm)
Blow Per Min: 1900
Length: 16-1/2"(419 mm)
ACH21041A.jpg Model No.: ACH21041A (Heavy-Duty series)
Stroke: 4-11/16"(119 mm)
Blow Per Min: 1900
Length: 16-1/2"(419 mm)
ACH21042.jpg Model No.: ACH21042 (Heavy-Duty series)
Stroke: 5-19/32"(142 mm)
Blow Per Min: 1700
Length: 17-1/2"(445 mm)
ACH21042A.jpg Model No.: ACH21042A (Heavy-Duty series)
Stroke: 5-19/32"(142 mm)
Blow Per Min: 1700
Length: 17-1/2"(445 mm)
ACH21050.jpg Model No.: ACH21050 (Heavy-Duty series)
Stroke: 2-11/16"(52 mm)
Blow Per Min: 2500
Length: 14-15/16"(380 mm)
Air Riveting Hammers
02206.jpg Model No.: ARH22066
Capacity: 3/16"(4.8 mm)
Stroke: 2-11/16"(68 mm)
Blow Per Min: 1560
Length: 8-15/16"(211 mm)
02312A.jpg Model No.: ARH23122
Capacity: 3/32"(2.4 mm)
BorexStroke: 1/2x2-1/4"(12.7x57.2 mm)
Blow Per Min: 2580
Length: 6-11/16"(170 mm)
02312B.jpg Model No.: ARH23123
Capacity: 5/32"(4.0 mm)
BorexStroke: 1/2x2-7/8"(12.7x73.0 mm)
Blow Per Min: 2160
Length: 7-5/16"(185 mm)
02312C.jpg Model No.: ARH23124
Capacity: 3/16"(4.8 mm)
BorexStroke: 1/2x3-1/16"(12.7x77.8 mm)
Blow Per Min: 1740
Length: 8-5/16"(211 mm)

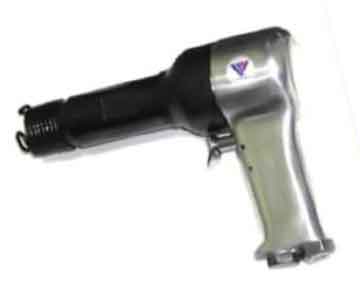

02312D.jpg Model No.: ARH23125
Capacity: 3/16"(4.8 mm)
BorexStroke: 3/4x2-11/16"(19.1x68.3 mm)
Blow Per Min: 1560
Length: 8-15/16"(227 mm)
02312E.jpg Model No.: ARH23127
Capacity: 1/4"(6.4 mm)
BorexStroke: 3/4x3-7/8"(19.1x98.4 mm)
Blow Per Min: 1140
Length: 9-15/16"(252 mm)
02312F.jpg Model No.: ARH23129
Capacity: 5/16"(7.9 mm)
BorexStroke: 3/4x5-13/16"(19.1x147.6 mm)
Blow Per Min: 900
Length: 11-15/16"(303 mm)
Air Long Reach Scaler & Air Scaling Hammers
ALS22010-1.jpg Model No.: ALS22010-1
Piston: 28.5x86.8 mm
Stroke: 33.2 mm
Blow Per Min: 2200
Length: 24.2"(614 mm)
ALS22010-2.jpg Model No.: ALS22010-2
Piston: 28.5x86.8 mm
Stroke: 33.2 mm
Blow Per Min: 2200
Length: 47.8"(1214 mm)
ALS22010-3.jpg Model No.: ALS22010-3
Piston: 28.5x86.8 mm
Stroke: 33.2 mm
Blow Per Min: 2200
Length: 59.6"(1514 mm)
ALS22010-4.jpg Model No.: ALS22010-4
Piston: 28.5x86.8 mm
Stroke: 33.2 mm
Blow Per Min: 2200
Length: 71.4"(1814 mm)
ASH22020.jpg Model No.: ASH22020
Piston: 27x69 mm
Stroke: 26 mm
Blow Per Min: 2400
Length: 541 mm
ASH22020A.jpg Model No.: ASH22020A
Piston: 27x69 mm
Stroke: 26 mm
Blow Per Min: 2400
Length: 497 mm
ASH22030R.jpg Model No.: ASH22030R
Piston: 30x80 mm
Stroke: 35 mm
Blow Per Min: 7000
Length: 561 mm
ASH22030T.jpg Model No.: ASH22030T
Piston: 30x80 mm
Stroke: 35 mm
Blow Per Min: 7000
Length: 531 mm
