Model No.: AIW69940 Capacity: 2-1/8"(53mm) Max Torque: 3000 ft-lbs/414 kg-m/4070 Nm Speed: 3000 rpm Mechanism: Twin Hammer |
||
|
Model No.: ANIW14940 Capacity: 1-3/4"(45mm) Max Torque: 2500 ft-lbs/345 kg-m/3390 Nm Speed: 3500 rpm Mechanism: Twin Hammer Optional Anvil: 6", 8" |
|
Model No.: ANIW15940 Capacity: 2"(50mm) Max Torque: 3000 ft-lbs/414 kg-m/4070 Nm Speed: 3000 rpm Mechanism: Twin Hammer Optional Anvil: 6", 8" |
1" DR. Air Impact Wrench
|
|||
|
Model No.: AIW01810 Capacity: 1-1/2"(38 mm) Max Torque: 1300 ft-lbs/180 kg-m/1760 Nm Speed: 3300 rpm Mechanism: Rocking-Dog Optional Anvil: 6" |
|
Model No.: AIW01830 Capacity: 1-3/4"(45 mm) Max Torque: 1800 ft-lbs/248 kg-m/2440 Nm Speed: 3000 rpm Mechanism: Pin-Clutch Optional Anvil: 6" |
|
Model No.: AIW02810 Capacity: 1-5/8"(41 mm) Max Torque: 1400 ft-lbs/193 kg-m/1900 Nm Speed: 3500 rpm Mechanism: Rocking-Dog |
|
Model No.: AIW03830 Capacity: 1-3/4"(45 mm) Max Torque: 1200 ft-lbs/166 kg-m/1630 Nm Speed: 3800 rpm Mechanism: Pin-Clutch |
|
Model No.: AIW04810 Capacity: 1-7/8"(48 mm) Max Torque: 2000 ft-lbs/276 kg-m/2710 Nm Speed: 3500 rpm Mechanism: Rocking-Dog Optional Anvil: 2" |
|
Model No.: AIW04830 Capacity: 1-7/8"(48 mm) Max Torque: 2000 ft-lbs/276 kg-m/2710 Nm Speed: 3500 rpm Mechanism: Pin-Clutch Optional Anvil: 2" |
|
Model No.: AIW07810 Capacity: 1-1/2"(38 mm) Max Torque: 1300 ft-lbs/180 kg-m/1760 Nm Speed: 3300 rpm Mechanism: Rocking-Dog Optional Anvil: 2", 8" |
|
Model No.: AIW07830 Capacity: 1-3/4"(45 mm) Max Torque: 1800 ft-lbs/248 kg-m/2440 Nm Speed: 3000 rpm Mechanism: Pin-Clutch Optional Anvil: 2", 8" |
|
Model No.: AIW08810 Capacity: 1-3/4"(45 mm) Max Torque: 1800 ft-lbs/248 kg-m/2440 Nm Speed: 2800 rpm Mechanism: Rockin-Dog Optional Anvil: 2" |
|
Model No.: AIW09820 Capacity: 1-1/4"(31 mm) Max Torque: 1300 ft-lbs/180 kg-m/1760 Nm Speed: 3000 rpm Mechanism: Two Hammer Optional Anvil: 2", 8" |
|
Model No.: AIW29840 Capacity: 1-3/4"(45 mm) Max Torque: 2500 ft-lbs/345 kg-m/3390 Nm Speed: 3500 rpm Mechanism: Twin Hammer Optional Anvil: 2", 6" |
|
Model No.: AIW58840 Capacity: 1-1/4"(31 mm) Max Torque: 2500 ft-lbs/345 kg-m/3390 Nm Speed: 3000 rpm Mechanism: Twin Hammer Optional Anvil: 2", 6" |
|
Model No.: AIW59840 Capacity: 2"(50 mm) Max Torque: 2000 ft-lbs/276 kg-m/2710 Nm Speed: 3700 rpm Mechanism: Twin Hammer Optional Anvil: 2", 6" |
|
Model No.: AIW60840 Capacity: 1-1/2"(38 mm) Max Torque: 1700 ft-lbs/235 kg-m/2305 Nm Speed: 3300 rpm Mechanism: Twin Hammer Optional Anvil: 2", 6" |
|
Model No.: AIW62840 Capacity: 1-37/64"(40 mm) Max Torque: 2000 ft-lbs/276 kg-m/2170 Nm Speed: 3000 rpm Mechanism: Twin Hammer Optional Anvil: 2", 8" |
|
Model No.: AIW63840 Capacity: 1-27/64"(36 mm) Max Torque: 1800 ft-lbs/248 kg-m/2440 Nm Speed: 4000 rpm Mechanism: Twin Hammer Optional Anvil: 2", 6" |
|
Model No.: AIW63845 Capacity: 1-27/64"(36 mm) Max Torque: 1800 ft-lbs/248 kg-m/2440 Nm Speed: 4000 rpm Mechanism: Twin Hammer Optional Anvil: 2", 6" |
|
Model No.: AIW64850B-2 Capacity: 2"(50 mm) Max Torque: 2000 ft-lbs/276 kg-m/2710 Nm Speed: 2400 rpm Mechanism: Twin Hammer Optional Anvil: 2", 8" |
|
Model No.: AIW66840 Capacity: 1-5/8"(41 mm) Max Torque: 1800 ft-lbs/248 kg-m/2440 Nm Speed: 3500 rpm Mechanism: Twin Hammer |
|
Model No.: AIW72840 Capacity: 2-1/8"(53 mm) Max Torque: 2000 ft-lbs/276 kg-m/2710 Nm Speed: 4500 rpm Mechanism: Twin Hammer Optional Anvil: 2", 6" |
|
Model No.: AIW80840 Max Torque: 2500 ft-lbs/345 kg-m/3390 Nm Speed: 4500 rpm Mechanism: Twin Hammer Optional Anvil: 2" |
|
Model No.: AIW80850 Max Torque: 2500 ft-lbs/345 kg-m/3390 Nm Speed: 4500 rpm Mechanism: Swim Hammer Optional Anvil: 2" |
|
Model No.: ANIW01810 Capacity: 1-5/8"(41 mm) Max Torque: 1400 ft-lbs/193 kg-m/1900 Nm Speed: 3500 rpm Mechanism: Rocking-Dog |
|
Model No.: ANIW03830 Capacity: 1-1/2"(38 mm) Max Torque: 1300 ft-lbs/180 kg-m/1760 Nm Speed: 3500 rpm Mechanism: Pin-Clutch Optional Anvil: 2" |
|
Model No.: ANIW16840 Capacity: 1-1/4"(31 mm) Max Torque: 1500 ft-lbs/207 kg-m/2030 Nm Speed:4000 rpm Mechanism: Twin Hammer Optional Anvil: 6" |
|
Model No.: ANIW17840 Capacity: 1"(25 mm) Max Torque: 1800 ft-lbs/248 kg-m/2440 Nm Speed: 4000 rpm Mechanism: Twin Hammer Optional Anvil: 6" |
|
Model No.: ANIW17845 Capacity: 1-1/2"(38 mm) Max Torque: 1800 ft-lbs/248 kg-m/2440 Nm Speed: 4000 rpm Mechanism: Twin Hammer Optional Anvil: 2", 6" |
|
Model No.: ANIW19840 Capacity: 1-1/4"(31 mm) Max Torque: 1200 ft-lbs/166 kg-m/1630 Nm Speed: 5500 rpm Mechanism: Twin Hammer Optional Anvil: 6" |
|
Model No.: ANIW42840 (Composite series) Capacity: 1-5/8"(41 mm) Max Torque: 1500 ft-lbs/207 kg-m/1030 Nm Speed: 5300 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW42840S (Composite series) Capacity: 1-5/8"(41 mm) Max Torque: 1500 ft-lbs/207 kg-m/1030 Nm Speed: 5300 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW64840 (Composite series) Capacity: 1-13/16"(46 mm) Max Torque: 2000 ft-lbs/276 kg-m/2710 Nm Speed: 4000 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW64841 (Composite series) Capacity: 1-3/4"(45 mm) Max Torque: 1800 ft-lbs/2445 Nm Speed: 4000 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW65840 (Composite series) Capacity: 1-3/4"(45 mm) Max Torque: 18000 ft-lbs/2445 Nm Speed: 4000 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW66840 (Composite series) Capacity: 1-1/4"(32 mm) Max Torque: 1438 ft-lbs/198 kg-m/1950 Nm Speed: 5500 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW85840 (Magnesium composite) Max Torque: 2000 ft-lbs/276 kg-m/2710 Nm Speed: 4500 rpm Mechanism: Twin Hammer |
|

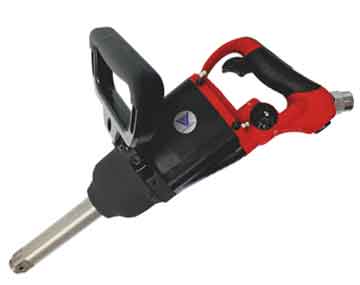

Model No.: ANIW86840 (Magnesium composite) Max Torque: 1800 ft-lbs/248 kg-m/2440 Nm Speed: 4500 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW87840 (Composite series) Max Torque: 1800 ft-lbs/248 kg-m/2440 Nm Speed: 5000 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW88840 (Composite series) Max Torque: 1600 ft-lbs/221 kg-m/2170 Nm Speed: 5500 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW88840-6 (Composite series) Max Torque: 1600 ft-lbs/221 kg-m/2170 Nm Speed: 5500 rpm Mechanism: Twin Hammer |
|

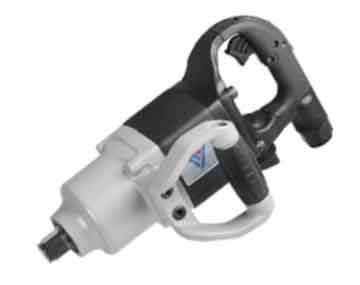

Model No.: ANIW89840-2 (Composite series) Max Torque: 2000 ft-lbs/276 kg-m/2710 Nm Speed: 5000 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW89840 (Composite series) Max Torque: 2000 ft-lbs/276 kg-m/2710 Nm Speed: 5000 rpm Mechanism: Twin Hammer |
|
Model No.: ANIW95840 (Magnesium composite) Max Torque: 1250 ft-lbs/173 kg-m/1695 Nm (5 Sec.) Speed: 6000 rpm Mechanism: Twin Hammer |
...
