... 1-1/2" & 1", 3/4", 1/2", 3/8", 1/4" ...

3/8" DR. Air Impact Wrench

00711.jpg Model No.: AIW16310
Max Torque: 160 ft-lbs/22 kg-m/220 Nm
Speed: 9000 rpm
Mechanism: Pin-Clutch
00807.jpg Model No.: AIW30310
Max Torque: 75 ft-lbs/10 kg-m/100 Nm
Speed: 9000 rpm
Mechanism: Rockingo-Dog
00807.jpg Model No.: AIW30330
Max Torque: 190 ft-lbs/26 kg-m/260 Nm
Speed: 9000 rpm
Mechanism: Pin-Clutch
AIW32320.jpg Model No.: AIW32320
Max Torque: 100 ft-lbs/14 kg-m/135 Nm
Speed: 6500 rpm
Mechanism: Two Hammer
00810.jpg Model No.: AIW33320
Max Torque: 130 ft-lbs/18 kg-m/180 Nm
Speed: 11000 rpm
Mechanism: Two Hammer
AIW35320.jpg Model No.: AIW35320
Max Torque: 130 ft-lbs/18 kg-m/175 Nm
Speed: 7000 rpm
Mechanism: Two Hammer
00813.jpg Model No.: AIW36320
Max Torque: 130 ft-lbs/18 kg-m/175 Nm
Speed: 7000 rpm
Mechanism: Two Hammer
00815.jpg Model No.: AIW38310
Max Torque: 75 ft-lbs/10 kg-m/100 Nm
Speed: 10000 rpm
Mechanism: Rocking-Dog
AIW52320.jpg Model No.: AIW52320
Torque: 88.5 ft-lbs(120 Nm)
Speed: 6500 rpm
Mechanism: Two Hammer
AIW61360.jpg Model No.: AIW61360
Max Torque: 200 ft-lbs/28 kg-m/270 Nm
Speed: 8500 rpm
Mechanism: Jumbo Hammer
00718.jpg Model No.: ANIW21330
Max Torque: 220 ft-lbs/30 kg-m/300 Nm
Speed: 9000 rpm
Mechanism: Pin-Clutch
00719.jpg Model No.: ANIW22310
Max Torque: 220 ft-lbs/30 kg-m/300 Nm
Speed: 7000 rpm
Mechanism: Single Hammer
00719H.jpg Model No.: ANIW22310H
Max Torque: 220 ft-lbs/30 kg-m/300 Nm
Speed: 7000 rpm
Mechanism: Single Hammer

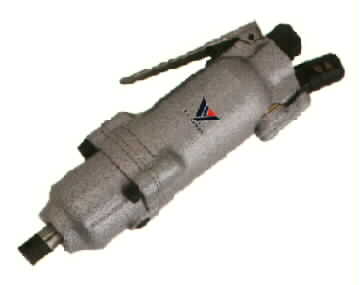

00821.jpg Model No.: ANIW23320
Max Torque: 20 ft-lbs/2.8 kg-m/30 Nm
Speed: 7500 rpm
Mechanism: Two Hammer
00822.jpg Model No.: ANIW24320
Max Torque: 20 ft-lbs/2.8 kg-m/30 Nm
Speed: 7500 rpm
Mechanism: Two Hammer
00823.jpg Model No.: ANIW25320
Max Torque: 55 ft-lbs/8 kg-m/75 Nm
Speed: 8000 rpm
Mechanism: Two Hammer
ANIW26320.jpg Model No.: ANIW26320
Max Torque: 20 ft-lbs/2.8 kg-m/30 Nm
Speed: 8000 rpm
Mechanism: Two Hammer
01024W.jpg Model No.: ANIW31310
Torque: 100 ft-lbs(135 Nm)
Speed: 10000 rpm
Mechanism: Rocking-Dog
01024W.jpg Model No.: ANIW38340 (Composite series)
Torque: 280 ft-lbs(376 Nm)
Speed: 10000 rpm
Mechanism: Twin Hammer
01024W.jpg Model No.: ANIW39340
Torque: 190 ft-lbs(260 Nm)
Speed: 10000 rpm
Mechanism: Twin Hammer
01024W.jpg Model No.: ANIW46340 (Composite series)
Torque: 320 ft-lbs(430 Nm)
Speed: 10000 rpm
Mechanism: Twin Hammer
ANIW68340.jpg Model No.: ANIW68340 (Composite series)
Torque: 320 ft-lbs(430 Nm)
Speed: 12000 rpm
Mechanism: Twin Hammer
ANIW78340.jpg Model No.: ANIW78340 (Composite series)
Torque: 400 ft-lbs /55 kg-m /542 Nm (5 Sec.)
Speed: 13500 rpm
Mechanism: Twin Hammer
(One-Hand-Operated)
ANIW82340.jpg Model No.: ANIW82340 (Composite series)
Torque: 450 ft-lbs /62 kg-m /610 Nm (5 Sec.)
Speed: 8000 rpm
Mechanism: Twin Hammer
ANIW91340.jpg Model No.: ANIW91340 (Composite series)
Torque: 350 ft-lbs /49 kg-m /475 Nm (5 Sec.)
Speed: 8000 rpm
Mechanism: Twin Hammer


... 1-1/2" & 1", 3/4", 1/2", 3/8", 1/4" ...
