Model No.: AIW10430 Max Torque: 380 ft-lbs/52 kg-m/510 Nm Speed: 7000 rpm Mechanism: Pin-Clutch |
Model No.: AIW13410 Max Torque: 230 ft-lbs/32 kg-m/310 Nm Speed: 7000 rpm Mechanism: Rocking-Dog |
||
Model No.: AIW13410-2 Max Torque: 230 ft-lbs/32 kg-m/310 Nm Speed: 7000 rpm Mechanism: Rocking-Dog |
Model No.: AIW13410P Max Torque: 230 ft-lbs/32 kg-m/310 Nm Speed: 7000 rpm Mechanism: Rocking-Dog |
||
Model No.: AIW13430 Max Torque: 320 ft-lbs/44 kg-m/430 Nm Speed: 7000 rpm Mechanism: Pin-Clutch |
Model No.: AIW16410 Max Torque: 400 ft-lbs/55 kg-m/540 Nm Speed: 7000 rpm Mechanism: Pin-Clutch |
||
Model No.: AIW17440 Max Torque: 425 ft-lbs/58 kg-m/580 Nm Speed: 7000 rpm Mechanism: Twin Hammer |
Model No.: AIW18410 Max Torque: 350 ft-lbs/48 kg-m/470 Nm Speed: 7000 rpm Mechanism: Pin-Clutch |
||
Model No.: AIW23440 Max Torque: 400 ft-lbs/55 kg-m/540 Nm Speed: 7000 rpm Mechanism: Twin Hammer |
Model No.: AIW24440 Max Torque: 500 ft-lbs/69 kg-m/680 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
||
Model No.: AIW24440B Max Torque: 500 ft-lbs/69 kg-m/680 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
Model No.: AIW24440P Max Torque: 500 ft-lbs/69 kg-m/680 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
||
Model No.: AIW24441 Max Torque: 450 ft-lbs/62 kg-m/610 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
Model No.: AIW25440 Max Torque: 400 ft-lbs/55 kg-m/540 Nm Speed: 7000 rpm Mechanism: Twin Hammer |
||
Model No.: AIW26440 Max Torque: 500 ft-lbs/69 kg-m/680 Nm Speed: 7000 rpm Mechanism: Twin Hammer |
Model No.: AIW30410 Max Torque: 125 ft-lbs/17 kg-m/170 Nm Speed: 9000 rpm Mechanism: Rocking-Dog |
||
Model No.: AIW30430 Max Torque: 190 ft-lbs/26 kg-m/260 Nm Speed: 9000 rpm Mechanism: Pin-Clutch |
Model No.: AIW53441 Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
||
Model No.: AIW53441P Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
Model No.: AIW54440P Max Torque: 400 ft-lbs/55 kg-m/540 Nm Speed: 11000 rpm Mechanism: Twin Hammer |
||
Model No.: AIW54442 Max Torque: 450 ft-lbs/62 kg-m/610 Nm Speed: 7500 rpm Mechanism: Twin Hammer (Mini type 122mmL) |
Model No.: AIW71460 Max Torque: 500 ft-lbs/69 kg-m/680 Nm Speed: 10000 rpm Mechanism: Jumbo Hammer (Mini type 120mmL) |
||
Model No.: AIW77440 Max Torque: 450 ft-lbs/62 kg-m/610 Nm Speed: 11000 rpm Mechanism: Twin Hammer (Mini type 103mmL) |
Model No.: AIW77445 Max Torque: 500 ft-lbs/69 kg-m/680 Nm Speed: 11000 rpm Mechanism: Twin Hammer (Mini type 108mmL) |
||
Model No.: AIW77460 Max Torque: 500 ft-lbs/69 kg-m/680 Nm Speed: 11000 rpm Mechanism: Jumbo Hammer (Mini type 99mmL) |
Model No.: AIW78460 Max Torque: 450 ft-lbs/62 kg-m/610 Nm Speed: 11000 rpm Mechanism: Jumbo Hammer (Mini type 93mmL) |
||
Model No.: AIW79460 Max Torque: 500 ft-lbs/69 kg-m/678 Nm Speed: 9500 rpm Mechanism: Jumbo Hammer (Mini type 97mmL) |
Model No.: AIW92460 Max Torque: 500 ft-lbs/69 kg-m/678 Nm (5 Sec.) Speed: 10000 rpm Mechanism: Jumbo Hammer (One-Hand-Operated) |
||
Model No.: ANIW08430 Max Torque: 450 ft-lbs/62 kg-m/610 Nm Speed: 7000 rpm Mechanism: Pin-Clutch |
Model No.: ANIW20430 Max Torque: 450 ft-lbs/62 kg-m/610 Nm Speed: 7000 rpm Mechanism: Pin-Clutch |
||
Model No.: ANIW20430H Max Torque: 450 ft-lbs/62 kg-m/610 Nm Speed: 7000 rpm Mechanism: Pin-Clutch |
Model No.: ANIW20440 Max Torque: 500 ft-lbs/69 kg-m/680 Nm Speed: 7000 rpm Mechanism: Twin Hammer |
||
Model No.: ANIW20440H Max Torque: 500 ft-lbs/69 kg-m/680 Nm Speed: 7000 rpm Mechanism: Twin Hammer |
Model No.: ANIW21430 Max Torque: 220 ft-lbs/30 kg-m/300 Nm Speed: 9000 rpm Mechanism: Pin-Clutch |
||
Model No.: ANIW22410H Max Torque: 220 ft-lbs/30 kg-m/300 Nm Speed: 7000 rpm Mechanism: Single Hammer |
Model No.: ANIW27420 Max Torque: 310 ft-lbs/43 kg-m/420 Nm Speed: 4500 rpm Mechanism: Two Hammer |
||
Model No.: ANIW28420 Max Torque: 243 ft-lbs/34 kg-m/330 Nm Speed: 6000 rpm Mechanism: Two Hammer |
Model No.: ANIW29440 Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 6500 rpm Mechanism: Twin Hammer |
||
Model No.: ANIW30430 Max Torque: 400 ft-lbs/55 kg-m/540 Nm Speed: 8000 rpm Mechanism: Pin-Clutch |
Model No.: ANIW32440 (Composite series) Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
||
Model No.: ANIW33430 (Composite series) Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
Model No.: ANIW34440 (Composite series) Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
||
Model No.: ANIW36440 (Composite series) Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
Model No.: ANIW38440 (Composite series) Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
||
Model No.: ANIW39440 Torque: 250 ft-lbs(340 Nm) Speed: 10000 rpm Mechanism: Twin Hammer |
Model No.: ANIW57440 (Composite series) Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
||
Model No.: ANIW58440 (Composite series) Torque: 400 ft-lbs(540 Nm) Speed: 10000 rpm Mechanism: Twin Hammer |
Model No.: ANIW61440 (Composite series) Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Twin Hammer |
||
Model No.: ANIW67430 (Composite series) Max Torque: 811 ft-lbs/112kg-m/1100 Nm Speed: 7500 rpm Mechanism: Ping-Clutch |
Model No.: ANIW67440 (Composite series) Max Torque: 1000 ft-lbs/138 kg-m/1360 Nm Speed: 7500 rpm Mechanism: Twin Hammer |
||
Model No.: ANIW68440 (Composite series) Max Torque: 330 ft-lbs/45 kg-m/444 Nm Speed: 12000 rpm Mechanism: Twin Hammer |
Model No.: ANIW69460 (Composite series) Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Jumbo Hammer |
||

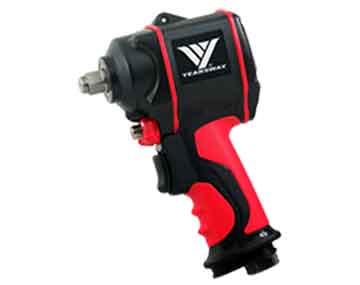

Model No.: ANIW70440 (Composite series) Max Torque: 450 ft-lbs/62 kg-m/610 Nm Speed: 9000 rpm Mechanism: Twin Hammer (One-Hand-Operated & Mini type 122mmL) |
Model No.: ANIW71440 (Composite series) Max Torque: 900 ft-lbs/124 kg-m/1220 Nm Speed: 6500 rpm Mechanism: Twin Hammer (One-Hand-Operated) |
||
Model No.: ANIW72440 (Composite series) Max Torque: 600 ft-lbs/84 kg-m/810 Nm Speed: 8000 rpm Mechanism: Twin Hammer (One-Hand-Operated) |
Model No.: ANIW73440 (Composite series) Max Torque: 950 ft-lbs/131 kg-m/1288 Nm Speed: 8000 rpm Mechanism: Twin Hammer (One-Hand-Operated) |
||
Model No.: ANIW77440 (Composite series) Max Torque: 1000 ft-lbs/138 kg-m/1360 Nm Speed: 8000 rpm Mechanism: Twin Hammer (One-Hand-Operated) |
Model No.: ANIW78440 (Composite series) Max Torque: 460 ft-lbs/59 kg-m/583 Nm (5 Sec.) Speed: 13500 rpm Mechanism: Twin Hammer (One-Hand-Operated) |
||

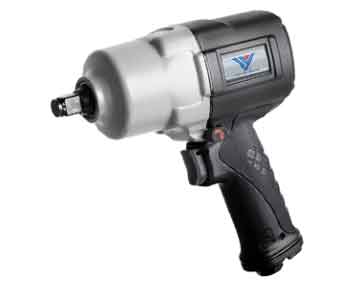

Model No.: ANIW79440 (Composite series) Max Torque: 750 ft-lbs/1049 kg-m/1017 Nm (5 Sec.) Speed: 8500 rpm Mechanism: Twin Hammer (One-Hand-Operated) |
Model No.: ANIW80440 (Composite series) Max Torque: 900 ft-lbs/124 kg-m/1220 Nm (5 Sec.) Speed: 8000 rpm Mechanism: Twin Hammer (One-Hand-Operated) |
||
Model No.: ANIW83440 (Composite series) Max Torque: 820 ft-lbs/113 kg-m/1112 Nm Speed: 8500 rpm Mechanism: Twin Hammer |
Model No.: ANIW90440 (Composite series) Max Torque: 1000 ft-lbs/138 kg-m/1356 Nm (5 Sec.) Speed: 9500 rpm Mechanism: Twin Hammer |
||
Model No.: ANIW91440 (Composite series) Max Torque: 400 ft-lbs/55 kg-m/542 Nm (5 Sec.) Speed: 10000 rpm Mechanism: Twin Hammer (One-Hand-Operated) |
Model No.: ANIW91460 (Composite series) Max Torque: 500 ft-lbs/69 kg-m/678 Nm (5 Sec.) Speed: 10000 rpm Mechanism: Jumbo Hammer |
||
Model No.: ANIW92440 (Composite series) Max Torque: 1100 ft-lbs/152 kg-m/1492 Nm (5 Sec.) Speed: 8500 rpm Mechanism: Twin Hammer |
Model No.: ANIW94440 (Magnesium composite) Max Torque: 800 ft-lbs/111 kg-m/1085 Nm (5 Sec.) Speed: 8500 rpm Mechanism: Twin Hammer |
||
Model No.: ANIW96440 (Composite series) Max Torque: 350 ft-lbs/48 kg-m/470 Nm (5 Sec.) Speed: 10000 rpm Mechanism: Twin Hammer (One-Hand-Operated) |
